Spiral Mixers

MODEL

TS-568

Mixing Speed (r/min)

High 270 RPM

Low 135 RPM

Dough Capacity

50 KG

Voltage

415v

Power

6.75 HP

Weight

380 KG

Dimensions (LxWxH) (mm)

1100 x 680 x 1160

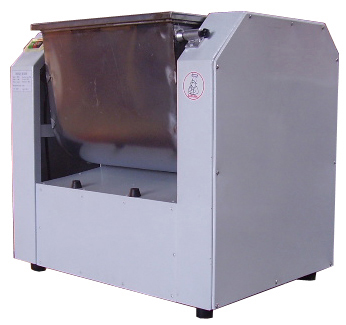

Horizontal Dough Mixers

MODEL

TT-D11

TT-D12

TT-D25

Dough Capacity

10 – 15 kg

20 – 25 kg

30 – 50 kg

Speed

50 r/min

40 r/min

40 r/min

Voltage

220v

220v

220v

Power

1.1kw

1.5kw

2.2kw

Weight

80 kg

95 kg

140 kg

Dimensions (LxWxH)  (mm)

640x490x770

730x550x770

930x680x970

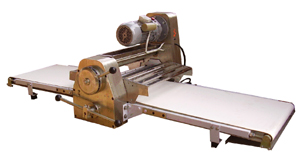

Dough Sheeters

MODEL

TSP-520

Width of Conveyor Belt

500mm

Dough Thickness

2 ~ 10 mm

Voltage

240v

Power

0.55 kw

Speed of Conveyor Belt

110/198 r/min

Weight

145 kg

Dimensions (LxWxH)  (mm)

1800 x 890 x 610

Design and technical specification subject to change for improvement without prior notice.

Design and technical specification subject to change for improvement without prior notice.

Design and technical specification subject to change for improvement without prior notice.

Design and technical specification subject to change for improvement without prior notice.

© Copyright 2014 Laku Industries Sdn. Bhd. :: All Rights Reserved.

TSP-520

HS 20

HS 30

HS 50

MT-288



MODEL

HS-20

HS-30

HS-50

HS-60

HS-80

Max. Dough Capacity

8 kg

12.5 kg

18 kg

25 kg

30 kg



Mixing Speed

Mixer Hook

230 / 120 rpm

230 / 123 rpm

230 / 120 rpm

210 / 104 rpm

230 / 114 rpm

Bowl

10 / 17 rpm

12 / 17 rpm

18 / 10 rpm

19 / 9.5 rpm

20 / 10 rpm

Voltage

240v

240v

240v

240v

415v

Power

1.1 kw

1.5 kw

1.8 kw

1.6 kw

2.2 kw

Weight

95 kg

125 kg

80 kg

260 kg

320 kg

Dimensions (L x W x H) (mm)

630x380x750

800x500x900

710x450x850

1040x580x1150

1100x695x1160

MODEL

MT-288

Dough Thickness

2 ~ 10 mm

Voltage

240v

Power

1.1 kw

Roller Width

288 mm

Weight

116 kg

Dimensions  (LxWxH)  (mm)

530 X 410 X 870

Model

TS 216

TS 218

Bowl Capacity

80 liter

150 liter

Bowl Diameter

730 mm

810 mm

Motor

1 HP

1 1/2 HP

Weight (kg)

200

250

Dimension (LxWxH)  (mm)

1210  x 1100 x 1650

1210 x 1110 x 1670

Design and technical specification subject to change for improvement without prior notice.

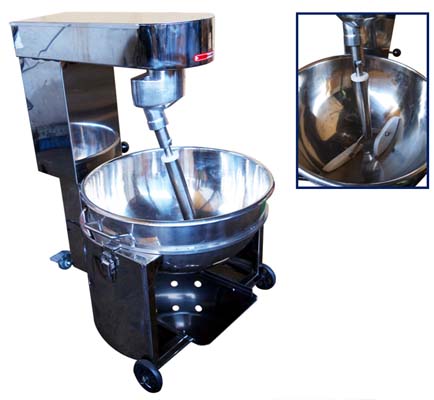

Model

GF-30T

Bowl Capacity

30 liter

Motor

1 HP

Dimension (LxWxH)  (mm)

850  x 630 x 910

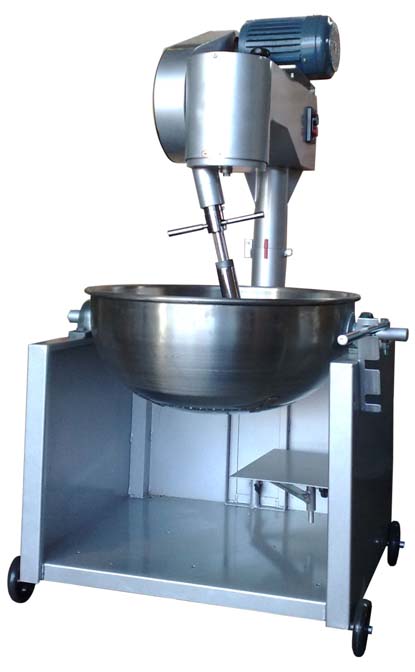

Bean Paste Cooker
